humiDisk
UC*
ลักษณะทั่วไป

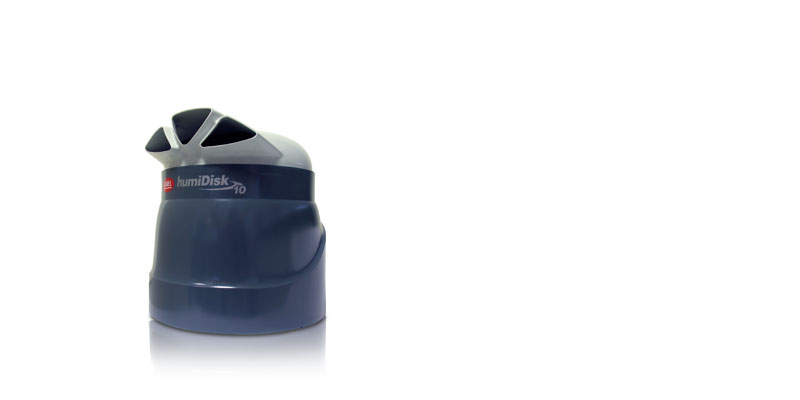

humiDisk is a centrifugal humidifier that uses a rotating disk to atomize the water into millions of tiny droplets which, driven by a built-in fan, are released into the environment humidifying and cooling the air. humiDisK is available in two versions: the version with a capacity of 1.0 l/h is compact, easy to use and can be controlled by an external switch or by a humidistat; the version with a capacity of 6.5 l/h, in addition to the bigger size and capacity, also offers the possibility to be controlled by an external electrical panel (optional), which allows the modulation of the capacity produced (from 1.1 to 6.5 l/h), the management of washing cycles at the start and end of the cycle and the activation and control of the anti-freeze device (also optional). Thanks to the ability to work at low temperatures (≥ 1°C) and to the very thin diameter of the droplets produced, humiDisk is particularly suitable for installation in refrigerating rooms and in storage warehouses for products like fruit and vegetables. However, the compact design and the excellent performance make humiDisk a versatile product for many other applications, such as the direct humidification of printing industries, textile industries, etc.
humiDisk can be used both with demineralized water and mains water.-
เพิ่ม
- easy to install and use
- guaranteed performance and versatility in all conditions, thanks to a rapid absorption of the droplets produced
- large and complete accessory kit (electrical panel, humidistat, anti-freeze resistance, UV lamp)
- reduced dimensions thanks to the predisposition for wall installation
เอกสาร
Technical
-
Manuals
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +030222023 คำอธิบาย humiDisk. дисковый увлажнитель ภาษา RUS วันที่ 11/09/2020 Release 2.7 รหัส +030222022 คำอธิบาย humiDisk: humidificador centrífugo/ centrifugal humidifier ภาษา ENG SPA วันที่ 11/09/2020 Release 2.7 รหัส +030222021 คำอธิบาย humiDisk: Humidificateur centrifuge/ Zentrifugalbefeuchter ภาษา FRE GER วันที่ 11/09/2020 Release 2.7 รหัส +030222020 คำอธิบาย humiDisk: umidificatore centrifugo/ centrifugal humidifier ภาษา ENG ITA วันที่ 11/09/2020 Release 2.7 -
BIM files
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส BIM files humiDisk คำอธิบาย ภาษา ALL วันที่ 11/03/2020 Release R0
Commercial
-
Brochure
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +3000018PL คำอธิบาย Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania ภาษา POL วันที่ 15/09/2020 Release 4.1 รหัส +3000018FR คำอธิบาย L’humidité est importante! Les humidificateurs CAREL, une solution pour chaque application ภาษา FRE วันที่ 15/09/2020 Release 4.1 รหัส +3000018ES คำอธิบาย ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad ภาษา ENG SPA วันที่ 15/09/2020 Release 4.1 รหัส +3000018EN คำอธิบาย Humidity matters! CAREL humidifiers, a solution for every need ภาษา ENG วันที่ 15/09/2020 Release 4.1 รหัส +3000018DE คำอธิบาย Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. ภาษา GER วันที่ 15/09/2020 Release 4.1 รหัส +3000018IT คำอธิบาย L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta ภาษา ITA วันที่ 15/09/2020 Release 4.1 รหัส +3000193IT คำอธิบาย Umidificazione diretta: Soluzioni all’avanguardia per ambienti industriali e commerciali ภาษา ITA วันที่ 15/11/2019 Release 1.1 รหัส +3000193NL คำอธิบาย Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen ภาษา DUT วันที่ 15/11/2019 Release 1.1 รหัส +3000193ES คำอธิบาย Humectación directa Soluciones avanzadas para ambientes industriales y comerciales ภาษา SPA วันที่ 15/11/2019 Release 1.1 รหัส +3000193DE คำอธิบาย Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel ภาษา GER วันที่ 15/11/2019 Release 1.1 รหัส +3000193EN คำอธิบาย Direct humidification: Advanced solutions for industrial and commercial environments ภาษา ENG วันที่ 15/11/2019 Release 1.1 รหัส +3000018KR คำอธิบาย 최고의 습도 조절을 위한 CAREL solutions ภาษา KOR วันที่ 19/02/2015 Release 3.0 รหัส +3000018ZH คำอธิบาย 湿度问题! CAREL解决方案 满足您的加湿需求 ภาษา CHI วันที่ 19/02/2015 Release 3.0 รหัส +3000018PT คำอธิบาย A humidade é importante! Soluções CAREL para as suas necessidades de humidificação ภาษา POR วันที่ 19/02/2015 Release 3.0 รหัส +30U0018EN คำอธิบาย Humidity matters! CAREL solutions for your humidification needs ( USA) ภาษา ENG วันที่ 01/10/2012 Release 2.0 รหัส +3000018FI คำอธิบาย Kosteudella on merkitystä! CAREL kostuttimet, ratkaisu kostutustarpeisiin. ภาษา FIN วันที่ 01/10/2012 Release 2.0 รหัส +3000018SV คำอธิบาย Fukt är viktigt! Med befuktare från CAREL inns det en lösning för alla behov ภาษา SWE วันที่ 01/10/2012 Release 2.0 รหัส +3000018CS คำอธิบาย Na vlhkosti záleží! CAREL - řešení Vašich potřeb zvlhčování ภาษา CZE วันที่ 01/10/2012 Release 2.0 รหัส +302235433 คำอธิบาย Контроль влажности в текстильной промышленности ภาษา RUS วันที่ 02/07/2007 Release 1.0 รหัส +302240428 คำอธิบาย humiDisk: For cold rooms and store rooms ภาษา KOR วันที่ 15/05/2007 Release 2.0 รหัส +30C240431 คำอธิบาย 适宜的新鲜度? ภาษา CHI วันที่ 15/05/2007 Release 1.0 รหัส +302240438 คำอธิบาย humiDisk: Для холодильных камер и складских помещений ภาษา RUS วันที่ 15/05/2007 Release 2.0 รหัส +302240434 คำอธิบาย humiDisk: Para cámaras frigoríficas y pequeños ambientes ภาษา SPA วันที่ 15/05/2007 Release 2.0 รหัส +302240433 คำอธิบาย humiDisk: Für Kühl- und Lagerräume ภาษา GER วันที่ 15/05/2007 Release 2.0 รหัส +302240432 คำอธิบาย humiDisk: Pour chambres froides et petits locaux ภาษา FRE วันที่ 15/05/2007 Release 2.0 รหัส +302240431 คำอธิบาย humiDisk: For cold rooms and store rooms ภาษา ENG วันที่ 15/05/2007 Release 2.0 รหัส +302240430 คำอธิบาย humiDisk: Per celle frigorifere e piccoli ambienti ภาษา ITA วันที่ 15/05/2007 Release 2.0 รหัส +302239432 คำอธิบาย Solutions pour comptoirs et cellules frigorifiques ภาษา FRE วันที่ 01/10/2006 Release 1.0 รหัส +302239433 คำอธิบาย Lösungen für Kühlmöbel und Kühlräume ภาษา GER วันที่ 01/10/2006 Release 1.0 รหัส +302239434 คำอธิบาย Soluciones para muebles y cámaras frigoríficas ภาษา SPA วันที่ 01/10/2006 Release 1.0 รหัส +302239436 คำอธิบาย Решения для витрин и холодильных камер ภาษา RUS วันที่ 01/10/2006 Release 1.0 รหัส +302235384 คำอธิบาย soluciones para la industria del tabaco ภาษา SPA วันที่ 15/01/2006 Release 1.0 รหัส +302235383 คำอธิบาย Lösungen für die Tabakindustrie ภาษา GER วันที่ 15/01/2006 Release 1.0 รหัส +302235382 คำอธิบาย solutions pour l’industrie du tabac ภาษา FRE วันที่ 15/01/2006 Release 1.0 รหัส +302239431 คำอธิบาย Solutions for showcases and cold rooms ภาษา ENG วันที่ 01/10/2005 Release 1.0 รหัส +302239430 คำอธิบาย Soluzioni per banchi e celle frigorifere ภาษา ITA วันที่ 01/10/2005 Release 1.0
Local Information
-
Local Information
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +3000018ES คำอธิบาย ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad ภาษา ENG SPA วันที่ 15/09/2020 Release 4.1 รหัส +3000018EN คำอธิบาย Humidity matters! CAREL humidifiers, a solution for every need ภาษา ENG วันที่ 15/09/2020 Release 4.1
