MC Multizone

MC*
MC Multizone
MC Multizone MC Multizone

  • ลักษณะทั่วไป

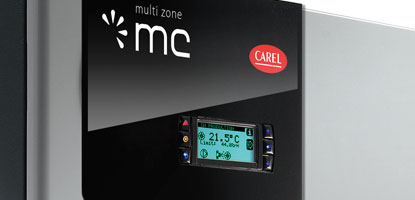

    MC is an atomizing adiabatic humidifier that uses the energy of compressed air to atomize water in micrometric droplets. The system consists of a cabinet equipped with an electronic controller and interface display, which, thanks to two independent networks of water and air piping, feeds the nozzles in the optimum conditions of flow and pressure. Inside the nozzle, the energy of the air is used to create an emulsion of water with droplets of the diameter of approximately 10 µm, allowing a rapid absorption.



    This feature makes MC the most suitable product for installations directly in the environment, with use in the textile industry and in the processing of wood and paper, in cellars and in refrigerating rooms, where compressed air is almost always available. However, in the absence of a pre-existing compressed air line, it is also advantageous to install an MC system equipped with a dedicated air compressor. MC can also be installed in the duct, as long as there is enough space for the absorption of the jet of atomized water.



    MC can be used both with demineralized water (to avoid sending salts into the environment) and with mains water: the nozzle is equipped with a particular cleaning needle inside, periodically activated by a spring, which cleans the orifice from any deposits of mineral salts. Thanks to the drainage solenoid valve placed at the end of the line, it is possible to drain the unit when idle and to wash it periodically. In favour of hygiene, a UV lamp (optional) is also supplied, to be installed immediately upstream of the cabinet.



    MC is available with a 60 l/h or 230 l/h cabinet. You can use the main/secondary solution when you want to add another area with an independent set point (up to 6 areas) or when you want to increase the humidification capacity (over 230 l/h) in a single area. The nozzles are available in various capacities: 2,7 – 4,0 – 5,4 – 6,8 – 10,0 l/h. The choice of the nozzle depends on how you want to divide the total humidification capacity.

  • เพิ่ม

    • very fine water-air emulsion, suitable for humidification and direct cooling in the environment thanks to its rapid absorption
    • possibility to use main/secondary, to increase capacity of for multi-area applications
    • possibility to choose the size of the nozzle in order to better divide the humidification load
    • nozzle with self-cleaning needle, can be used also with mains water


เอกสาร

Technical

  • BIM files
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส BIM files mc multizone

    คำอธิบาย

    ภาษา ALL

    วันที่ 11/03/2020

    Release R0

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +030221980

    คำอธิบาย MCmultizone: umidificatori atomizzatori

    ภาษา ITA

    วันที่ 12/04/2021

    Release 2.5

    รหัส +030221981

    คำอธิบาย MCmultizone: atomising humidifiers

    ภาษา ENG

    วันที่ 12/04/2021

    Release 2.5

    รหัส +030221982

    คำอธิบาย MCmultizone: humidificateurs atomiseurs

    ภาษา FRE

    วันที่ 12/04/2021

    Release 2.5

    รหัส +030221983

    คำอธิบาย MCmultizone: Druckluftzerstäuber

    ภาษา GER

    วันที่ 12/04/2021

    Release 2.5

    รหัส +030221984

    คำอธิบาย MCmultizone: humidificadores y atomizadores

    ภาษา SPA

    วันที่ 12/04/2021

    Release 2.5

    รหัส +030221987

    คำอธิบาย MCmultizone sumuttavat kostuttimet

    ภาษา FIN

    วันที่ 12/04/2021

    Release 2.5

  • Quick Guide
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +040000040

    คำอธิบาย MC Multizone: quick guide

    ภาษา ENG  ITA

    วันที่ 16/12/2014

    Release 1.1

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +050000915

    คำอธิบาย Line replacement procedure

    ภาษา ENG  FRE  GER  ITA  SPA

    วันที่ 28/01/2010

    Release 1.0


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000173EN

    คำอธิบาย Solutions for the tobacco industry Excellence in humidity control and monitoring

    ภาษา ENG

    วันที่ 18/04/2018

    Release 1.0

    รหัส +3000173IT

    คำอธิบาย Soluzioni per l’industria del tabacco L’eccellenza per il controllo e il monitoraggio dell’umidità

    ภาษา ITA

    วันที่ 18/04/2018

    Release 1.0

    รหัส +30C240441

    คำอธิบาย 气水混合型 加湿器

    ภาษา CHI

    วันที่ 23/04/2015

    Release 2.0

    รหัส +302240440

    คำอธิบาย mc multizone semplice e robusto, ideale per i grandi ambienti industriali

    ภาษา ITA

    วันที่ 30/03/2015

    Release 2.0

    รหัส +302240441

    คำอธิบาย mc multizone simple and robust, ideal for large industrial environments

    ภาษา ENG

    วันที่ 30/03/2015

    Release 2.0

    รหัส +302240442

    คำอธิบาย mc multizone simple et robuste, idéal pour les grands locaux industriels

    ภาษา FRE

    วันที่ 30/03/2015

    Release 2.0

    รหัส +302240443

    คำอธิบาย mc multizone Einfach und robust, ideal für große Industrieanlagen

    ภาษา GER

    วันที่ 30/03/2015

    Release 2.0

    รหัส +302240444

    คำอธิบาย mc multizone sencillo y robusto, ideal para los grandes ambientes industriales

    ภาษา SPA

    วันที่ 30/03/2015

    Release 2.0

    รหัส +302240447

    คำอธิบาย Увлажнители распылительного типа на сжатом воздухе

    ภาษา RUS

    วันที่ 01/03/2008

    Release 1.0

    รหัส +302240448

    คำอธิบาย mc multizone مرطبات الهواء باستخدام الهواء المضغوط

    ภาษา ARA

    วันที่ 01/03/2008

    Release 1.0

  • Other related documentation
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000224IT

    คำอธิบาย Educational - Utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    ภาษา ITA

    วันที่ 24/01/2022

    Release 1.1

    รหัส +3000224EN

    คำอธิบาย Educational - Make the best use of HVAC/R application technologies and systems

    ภาษา ENG

    วันที่ 24/01/2022

    Release 1.1

    รหัส +3000223IT

    คำอธิบาย Soluzione completa di servizi dedicata agli umidificatori CAREL

    ภาษา ITA

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223EN

    คำอธิบาย Complete services solution for CAREL humidifiers

    ภาษา ENG

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223ES

    คำอธิบาย Solución completa de servicios dedicada a los humidificadores CAREL

    ภาษา SPA

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223FR

    คำอธิบาย Solution complète de services pour les humidificateurs CAREL

    ภาษา FRE

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223PL

    คำอธิบาย Kompletne rozwiązanie serwisowe dla nawilżaczy CAREL

    ภาษา POL

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000018IT

    คำอธิบาย L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta

    ภาษา ITA

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000018DE

    คำอธิบาย Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen.

    ภาษา GER

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000018EN

    คำอธิบาย Humidity matters! CAREL humidifiers, a solution for every need

    ภาษา ENG

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000018ES

    คำอธิบาย ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad

    ภาษา ENG  SPA

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000018FR

    คำอธิบาย L’humidité est importante! Les humidificateurs CAREL, une solution pour chaque application

    ภาษา FRE

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000018PL

    คำอธิบาย Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania

    ภาษา POL

    วันที่ 15/09/2020

    Release 4.1

    รหัส +3000193IT

    คำอธิบาย Umidificazione diretta: Soluzioni all’avanguardia per ambienti industriali e commerciali

    ภาษา ITA

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193EN

    คำอธิบาย Direct humidification: Advanced solutions for industrial and commercial environments

    ภาษา ENG

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193DE

    คำอธิบาย Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel

    ภาษา GER

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193ES

    คำอธิบาย Humectación directa Soluciones avanzadas para ambientes industriales y comerciales

    ภาษา SPA

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193NL

    คำอธิบาย Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen

    ภาษา DUT

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000018PT

    คำอธิบาย A humidade é importante! Soluções CAREL para as suas necessidades de humidificação

    ภาษา POR

    วันที่ 19/02/2015

    Release 3.0

    รหัส +3000018ZH

    คำอธิบาย 湿度问题! CAREL解决方案 满足您的加湿需求

    ภาษา CHI

    วันที่ 19/02/2015

    Release 3.0

    รหัส +3000018KR

    คำอธิบาย 최고의 습도 조절을 위한 CAREL solutions

    ภาษา KOR

    วันที่ 19/02/2015

    Release 3.0

    รหัส +3000018CS

    คำอธิบาย Na vlhkosti záleží! CAREL - řešení Vašich potřeb zvlhčování

    ภาษา CZE

    วันที่ 01/10/2012

    Release 2.0

    รหัส +3000018SV

    คำอธิบาย Fukt är viktigt! Med befuktare från CAREL inns det en lösning för alla behov

    ภาษา SWE

    วันที่ 01/10/2012

    Release 2.0

    รหัส +3000018FI

    คำอธิบาย Kosteudella on merkitystä! CAREL kostuttimet, ratkaisu kostutustarpeisiin.

    ภาษา FIN

    วันที่ 01/10/2012

    Release 2.0

    รหัส +30U0018EN

    คำอธิบาย Humidity matters! CAREL solutions for your humidification needs ( USA)

    ภาษา ENG

    วันที่ 01/10/2012

    Release 2.0


Images

  • High resolution images
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส PH14LMC302-mc-range

    คำอธิบาย CAREL-MC Multizone-Compressed Air and Water Atomisers

    ภาษา ALL

    วันที่ 01/07/2021

    Release R.0
