• ลักษณะทั่วไป

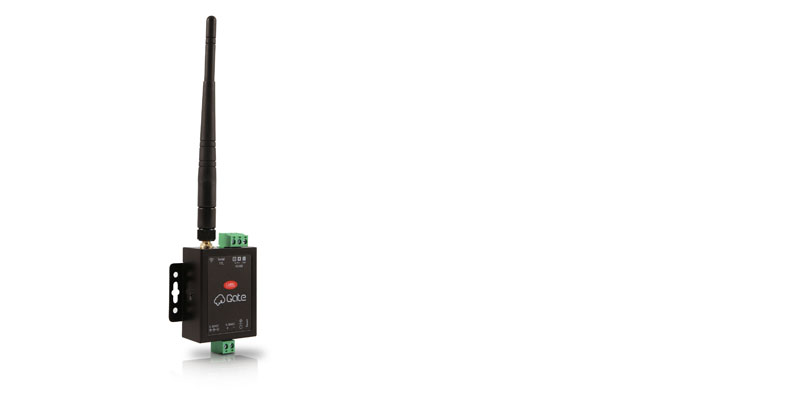

    CloudGate-mini is the new size in the CAREL IoT gateway family of monitoring systems for food service and scientific applications comprising a single unit and CAREL remote services based on the RED control platform.
    Cloudgate-mini is smaller in size than Cloudgate, however still includes many of its features, such as a local interface for status indication, removable terminals for the electrical connections, and the possibility to install the antenna outside of the electrical panel, using a special accessory.
    Cloudgate-mini offers connectivity to the Cloud using Wi-Fi technology.

  • เพิ่ม

    Compact product

    Product developed to be mounted using just two screws, with the possibility of installing the antenna remotely, allowing the gateway to be fitted quickly into electrical panels with limited space available.


    The gateway’s communication and operating status is immediately clear on the front LED interface, without needing additional external devices.

    Plug&play installation

    No need to contact the network infrastructure managers in the building where the device is installed: the WPS function means the device can be connected to the local network without needing to know the building’s router configuration.




  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0500170IE
    คำอธิบาย CloudGate-mini Wi-Fi: Istruzioni di montaggio / Assembly procedure
    ภาษา ENG  ITA
    วันที่ 14/07/2021
    Release 1.2


  • High resolution images
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส PH20LGT301-GTW000MWT0-cloudgate-mini
    คำอธิบาย CAREL Cloudgate-mini - Gateway IoT - Remote management and monitoring system
    ภาษา ALL
    วันที่ 16/10/2023
    Release R.0
