humiSteam Basic

UEY*
humiSteam Basic
humiSteam Basic humiSteam Basic humiSteam Basic

  • ลักษณะทั่วไป

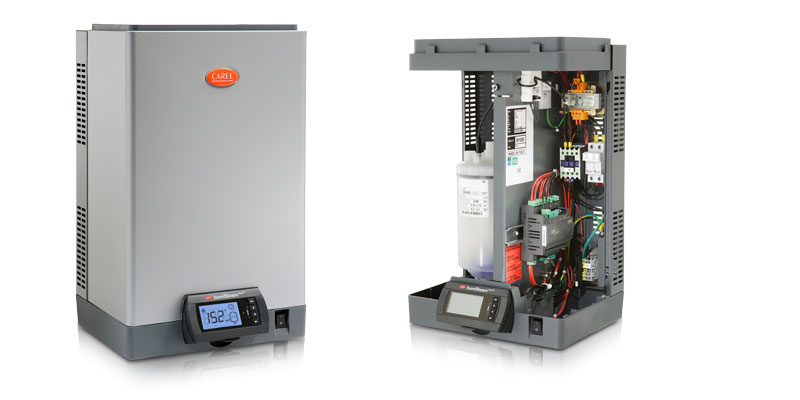

    humiSteam basic (Y) is suitable for installation in civil environments, offices, hospitals and industrial facilities, and is designed for installation both in rooms, using the steam blower, and air ducts, using the linear steam distributors.
    humiSteam basic is ideal for applications where steam production is controlled by an external signal, i.e. BMS or humidistat, and comes in a range from 1.5 to 65 kg/h.



    Steam production is controlled in the following modes:

    • ON/OFF mode: a simple contact (for example, a humidistat) starts/stops steam production;
    • proportional mode: the humidifier produces a quantity of steam that is directly proportional to the signal (0-10 V, 2-10 V, 0-20 mA, 4-20 mA) generated by the external controller, always between 20% and 100% of maximum capacity;
    • proportional mode: based on the set point and a humidity probe reading.

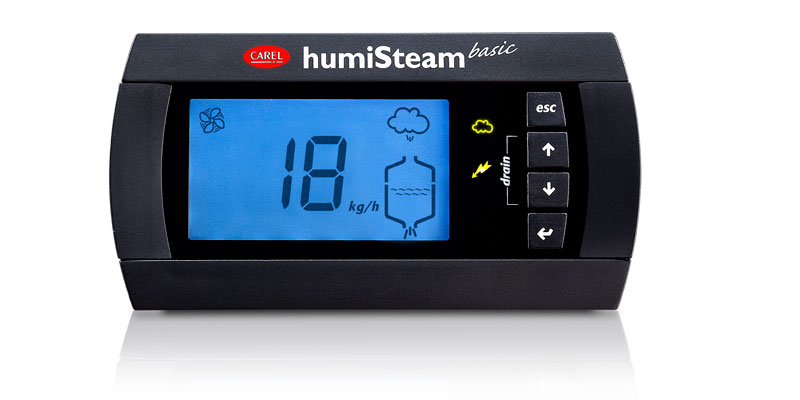

    Type "Y" humidifiers have a display with numbers and icons that shows the operating conditions and any diagnostic information extremely clearly and intuitively.
    In addition, they come with RS485 interface with Modbus protocol for remote configuration and control via BMS.



  • เพิ่ม

    • AFS system (Anti Foaming System): detects foam to prevent droplets of water being carried by the steam;
    • cylinders with galvanised electrodes and anti-scale filter at bottom, openable cylinders also available;
    steam production with continuous modulation from 20% to maximum rating ;
    • built-in conductivity sensor and control software to optimise energy efficiency and maintenance costs, with constant performance throughout cylinder life.
    • automatic water drain after 3 days of inactivity

  • วิดีโอ



เอกสาร

Technical

  • BIM files
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส BIM files humiSteam

    คำอธิบาย

    ภาษา ALL

    วันที่ 15/05/2020

    Release R1

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0300042FD

    คำอธิบาย humiSteam Basic

    ภาษา FRE  GER

    วันที่ 28/06/2022

    Release 1.8

    รหัส +0300042IE

    คำอธิบาย humiSteam Basic

    ภาษา ENG  ITA

    วันที่ 28/06/2022

    Release 1.8

    รหัส +0300042SP

    คำอธิบาย humiSteam Basic

    ภาษา POR  SPA

    วันที่ 28/06/2022

    Release 1.8

    รหัส +0300042RU

    คำอธิบาย humiSteam Basic

    ภาษา RUS

    วันที่ 28/06/2022

    Release 1.8

    รหัส +0300042PL

    คำอธิบาย humiSteam Basic nawilżacze

    ภาษา POL

    วันที่ 28/06/2022

    Release 1.8

    รหัส +0300040SV

    คำอธิบาย humiSteam x-plus Användarmanual Befuktare

    ภาษา SWE

    วันที่ 13/02/2020

    Release 1.6

    รหัส +08C0042EZ

    คำอธิบาย humiSteam 加湿器/humidifiers

    ภาษา CHI  ENG

    วันที่ 16/10/2017

    Release 1.0

  • Quick Guide
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +040000075

    คำอธิบาย humiSteam Basic- UEY hydraulic quick guide

    ภาษา ENG  ITA

    วันที่ 09/11/2009

    Release 1.0

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +050006004

    คำอธิบาย PLENUM FOR CMV - PLENUM PER VMC

    ภาษา ENG  ITA

    วันที่ 25/11/2024

    Release 1.1

    รหัส +050001641

    คำอธิบาย KITP0SAAD0 - Plenum for CMV - Plenum per VMC

    ภาษา ENG  ITA

    วันที่ 25/11/2024

    Release 1.1

    รหัส +050003645

    คำอธิบาย Ground support kit for humidifiers isothermal / Kit di supporto a terra per umidificatori isotermici

    ภาษา ENG  FRE  GER  ITA  SPA

    วันที่ 15/06/2023

    Release 1.0

    รหัส +050001350

    คำอธิบาย BL0*/BLC*1 - 2 - 3: Cilindri con perni a testa sagomata / Cylinders with snap-on

    ภาษา ENG  ITA

    วันที่ 02/04/2021

    Release 1.3

  • Tender Texts
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส humiSteam UE_DE

    คำอธิบาย

    ภาษา GER

    วันที่ 30/04/2021

    Release R0

    รหัส humiSteam UE _EN

    คำอธิบาย

    ภาษา ENG

    วันที่ 30/04/2021

    Release R0

    รหัส humiSteam UE _ITA

    คำอธิบาย

    ภาษา ITA

    วันที่ 29/04/2021

    Release R0

    รหัส humiSteam UE _FR

    คำอธิบาย

    ภาษา FRE

    วันที่ 29/04/2021

    Release R0

    รหัส humiSteam UE_ES

    คำอธิบาย

    ภาษา SPA

    วันที่ 29/04/2021

    Release R0


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000095IT

    คำอธิบาย humiSteam la scelta razionale adatta ad ogni applicazione

    ภาษา ITA

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095EN

    คำอธิบาย humiSteam the rational choice for any application

    ภาษา ENG

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095FR

    คำอธิบาย humiSteam le choix rationnel adapté à chaque application

    ภาษา FRE

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095DE

    คำอธิบาย humiSteam Die vernünftige Wahl für jede Anwendung

    ภาษา GER

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095ES

    คำอธิบาย humiSteam la elección racional adecuada para cualquier aplicación

    ภาษา SPA

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095RU

    คำอธิบาย humiSteam the rational choice for any application

    ภาษา RUS

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095PL

    คำอธิบาย humiSteam racjonalny wybór dla każdego z zastosowań

    ภาษา POL

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095NL.pdf

    คำอธิบาย humiSteam De rationele keuze, geschikt voor elke toepassing

    ภาษา DUT

    วันที่ 16/12/2021

    Release 2.0

    รหัส +3000095PT

    คำอธิบาย humiSteam a escolha racional adequada a todas as aplicações

    ภาษา POR

    วันที่ 17/03/2015

    Release 1.0

    รหัส +3000095ZH

    คำอธิบาย humiSteam 各种加湿应用的明智之选

    ภาษา CHI

    วันที่ 17/03/2015

    Release 1.0

    รหัส +3000095KR

    คำอธิบาย humiSteam

    ภาษา KOR

    วันที่ 17/03/2015

    Release 1.0

  • Other related documentation
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000269EN

    คำอธิบาย Air humidification in hospitals

    ภาษา ENG

    วันที่ 25/03/2025

    Release 1.0

    รหัส +3000269IT

    คำอธิบาย L’umidificazione dell’aria negli ospedali

    ภาษา ITA

    วันที่ 25/03/2025

    Release 1.0

    รหัส +3000269ES

    คำอธิบาย La humidificación del aire en hospitales

    ภาษา SPA

    วันที่ 25/03/2025

    Release 1.0

    รหัส +800004030

    คำอธิบาย Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    ภาษา ITA

    วันที่ 05/02/2025

    Release 1.3

    รหัส +800004031

    คำอธิบาย Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    ภาษา ENG

    วันที่ 05/02/2025

    Release 1.3

    รหัส +800004036

    คำอธิบาย Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    ภาษา POL

    วันที่ 05/02/2025

    Release 1.3

    รหัส +3000018IT

    คำอธิบาย L’umidità è importante - Umidificatori CAREL, una soluzione per ogni richiesta

    ภาษา ITA

    วันที่ 15/10/2024

    Release 5.0

    รหัส +3000018DE

    คำอธิบาย Die Feuchte zählt - CAREL-Befeuchter, eine Lösung für jedes Anliegen

    ภาษา GER

    วันที่ 15/10/2024

    Release 5.0

    รหัส +3000018EN

    คำอธิบาย Humidity matters - CAREL humidifiers, a solution for every need

    ภาษา ENG

    วันที่ 15/10/2024

    Release 5.0

    รหัส +3000018PL

    คำอธิบาย Nawilżanie ma znaczenie - Rozwiązania CAREL dla twoich potrzeb nawilżania

    ภาษา POL

    วันที่ 15/10/2024

    Release 5.0

    รหัส +3000018NL

    คำอธิบาย Bevochtiging is belangrijk - CAREL oplossingen voor uw bevochtigingsbehoefte

    ภาษา DUT

    วันที่ 15/10/2024

    Release 5.0

    รหัส +3000247EN

    คำอธิบาย Printing industry - Highly efficient solutions for eco-sustainable printing processes

    ภาษา ENG

    วันที่ 21/05/2024

    Release 1.0

    รหัส +3000247IT

    คำอธิบาย Industria della stampa - Soluzioni ad alta efficienza per processi di stampa eco-sostenibili

    ภาษา ITA

    วันที่ 21/05/2024

    Release 1.0

    รหัส +3000247FR

    คำอธิบาย Industrie de l’imprimerie - Nos solutions efficaces et éco-durables pour les métiers de l’impression

    ภาษา FRE

    วันที่ 21/05/2024

    Release 1.0

    รหัส +3000224IT

    คำอธิบาย Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    ภาษา ITA

    วันที่ 13/03/2024

    Release 2.1

    รหัส +3000224EN

    คำอธิบาย Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems

    ภาษา ENG

    วันที่ 13/03/2024

    Release 2.1

    รหัส +3000224FR

    คำอธิบาย Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R

    ภาษา FRE

    วันที่ 15/12/2023

    Release 2.0

    รหัส +3000230ES

    คำอธิบาย DigitalHUM y extensión de garantía para humidificadores CAREL

    ภาษา SPA

    วันที่ 02/02/2022

    Release 1.0

    รหัส +3000230EN

    คำอธิบาย DigitalHUM and warranty extension for CAREL humidifiers

    ภาษา ENG

    วันที่ 02/02/2022

    Release 1.0

    รหัส +3000230FR

    คำอธิบาย DigitalHUM et extension de garantie pour les humidificateurs CAREL

    ภาษา FRE

    วันที่ 02/02/2022

    Release 1.0

    รหัส +3000230IT

    คำอธิบาย DigitalHUM ed estensione di garanzia per umidificatori CAREL

    ภาษา ITA

    วันที่ 02/02/2022

    Release 1.0

    รหัส +3000230PL

    คำอธิบาย DigitalHUM i rozszerzenie gwarancji dla nawilżaczy CAREL

    ภาษา POL

    วันที่ 02/02/2022

    Release 1.0

    รหัส +3000223IT

    คำอธิบาย Soluzione completa di servizi dedicata agli umidificatori CAREL

    ภาษา ITA

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223EN

    คำอธิบาย Complete services solution for CAREL humidifiers

    ภาษา ENG

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223ES

    คำอธิบาย Solución completa de servicios dedicada a los humidificadores CAREL

    ภาษา SPA

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223FR

    คำอธิบาย Solution complète de services pour les humidificateurs CAREL

    ภาษา FRE

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000223PL

    คำอธิบาย Kompletne rozwiązanie serwisowe dla nawilżaczy CAREL

    ภาษา POL

    วันที่ 21/12/2021

    Release 1.0

    รหัส +3000193EN

    คำอธิบาย Direct humidification: Advanced solutions for industrial and commercial environments

    ภาษา ENG

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193DE

    คำอธิบาย Direkte Raumbefeuchtung Innovative Lösungen für die Industrie und den Handel

    ภาษา GER

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193ES

    คำอธิบาย Humectación directa Soluciones avanzadas para ambientes industriales y comerciales

    ภาษา SPA

    วันที่ 15/11/2019

    Release 1.1

    รหัส +3000193NL

    คำอธิบาย Directe bevochtiging Geavanceerde oplossingen voor industriële en commerciële omgevingen

    ภาษา DUT

    วันที่ 15/11/2019

    Release 1.1
