boss micro panel

BMBS*P****
boss micro panel
  • ลักษณะทั่วไป

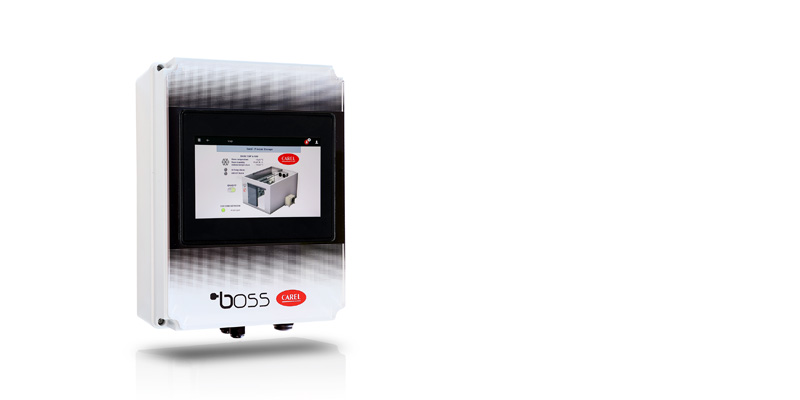

    boss micro panel completes the boss family with a range of plug & play solutions for systems with up to 30 devices, including both the supervisor hardware and a built-in 7” touch display.



    The solution is ready to be installed without needing any additional wiring or assembly, while the embedded Wi-Fi hotspot can be used to connect locally to the boss device for initial setup and other service activities, including from a PC or smartphone.



    The built-in touch display makes boss micro panel especially interesting for all refrigeration and HVAC applications where the end user needs to monitor system status at a glance, and act promptly to resolve any critical issues.



    boss micro panel is available in various versions for managing systems with up to 15 or 30 connected devices. The range also differs according to the types of built-in connectivity:

    • Ethernet only;
    • Ethernet + Wi-Fi;
    • Ethernet + Wi-Fi + 4G.



    The additional space available for a relay module, for example to be connected to an alarm signalling device, makes the solution even more flexible.



    Part number table



    Part number Name Supervisor hardware Connectivity
    BMBSTP7RP0 wired pocket boss-micro (15 devices, 150 varibles) Ethernet
    BMBSTP7FP0 Wi-Fi pocket Ethernet, Wi-Fi
    BMBSTP7MP0 Wi-Fi & 4G pocket Ethernet, Wi-Fi, 4G
    BMBSEP7RP0 wired enhanced boss-micro enhanced (30 devices, 300 varibles) Ethernet
    BMBSEP7FP0 Wi-Fi enhanced Ethernet, Wi-Fi
    BMBSEP7MP0 Wi-Fi & 4G enhanced Ethernet, Wi-Fi, 4G
  • เพิ่ม

    System under control

    Continuous monitoring of the status of connected devices, available from the built-in display; local and remote alarm management and parameter settings.

    Plug & play

    Simplified wall mounting, configuration wizard and space available for the CAREL relay module.

    Independent connection

    The built-in 4G modem can be used to receive alarms (SMS/email/Telegram) without relying on the local network.

    Family feeling

    boss micro panel retains all the monitoring and system optimisation features that defined the boss family supervisors.

    CE marked product

    Regulatory compliance guarantees electrical safety for operators and for the environment where the product is installed, as well as no interference with other electronic or radio devices in the vicinity.



เอกสาร

Technical

  • Certificates
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส CE Declaration for micro-boss Panel

    คำอธิบาย CE Declaration for micro-boss Panel

    ภาษา ENG

    วันที่ 06/03/2025

    Release R.0

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0300088PT

    คำอธิบาย boss Supervisor local para sistemas de médias e grandes dimensões

    ภาษา POR

    วันที่ 06/09/2022

    Release 1.4

    รหัส +0300088DE

    คำอธิบาย boss: Lokale Überwachungslösung für mittelgroße und große Anlagen

    ภาษา GER

    วันที่ 06/09/2022

    Release 1.4

    รหัส +0300088EN

    คำอธิบาย boss: Local supervisor for medium and large systems

    ภาษา ENG

    วันที่ 06/09/2022

    Release 1.4

    รหัส +0300088ES

    คำอธิบาย boss: Supervisor local para sistemas de tamaño medio y grande

    ภาษา SPA

    วันที่ 06/09/2022

    Release 1.4

    รหัส +0300088FR

    คำอธิบาย boss: Superviseur local pour les systèmes de taille moyenne et grande

    ภาษา FRE

    วันที่ 06/09/2022

    Release 1.4

    รหัส +0300088IT

    คำอธิบาย boss: Supervisore locale per sistemi di medie e grandi dimensioni

    ภาษา ITA

    วันที่ 06/09/2022

    Release 1.4

  • Quick Guide
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +040000260

    คำอธิบาย boss - Guida rapida - User manual - Mode d’emploi - Technisches Handbuch - Manual del usuario - Краткое руководство

    ภาษา ENG  FIN  FRE  GER  ITA  RUS  SPA

    วันที่ 23/09/2022

    Release 1.2

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0500185ML

    คำอธิบาย BOSS-MICRO PANEL START GUIDE - Supervisory solution for small and medium installations

    ภาษา ENG  FRE  GER  ITA

    วันที่ 12/02/2025

    Release 1.0

    รหัส +0500186ML

    คำอธิบาย BOSS-MICRO PANEL - MECHANICAL INSTALLATION

    ภาษา ALL

    วันที่ 12/02/2025

    Release 1.0

    รหัส +050003572

    คำอธิบาย Modulo relè per boss mini e boss micro

    ภาษา ENG  ITA

    วันที่ 08/11/2024

    Release 1.2

    รหัส +0500152IE

    คำอธิบาย μboss: Istruzioni di montaggio / Assembly procedure

    ภาษา ENG  ITA

    วันที่ 06/07/2023

    Release 1.4

    รหัส +0500191IE

    คำอธิบาย Best practices per messa in sicurezza boss range - Best security practices for the boss range

    ภาษา ENG  FRE  GER  ITA  POR  SPA

    วันที่ 04/08/2022

    Release 1.0


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000268PT

    คำอธิบาย boss micro panel - Soluções plug&play de monitoramento com tela integrada para sistemas até 30 dispositivos

    ภาษา POR

    วันที่ 14/03/2025

    Release 1.0

    รหัส +3000268ES

    คำอธิบาย boss micro panel - Soluciones de monitorización plug&play con pantalla integrada para instalaciones de hasta 30 dispositivos

    ภาษา SPA

    วันที่ 14/03/2025

    Release 1.0

    รหัส +3000268IT

    คำอธิบาย boss micro panel - Soluzioni plug&play di monitoraggio con display integrato per impianti fino a 30 dispositivi

    ภาษา ITA

    วันที่ 14/03/2025

    Release 1.0

    รหัส +3000268EN

    คำอธิบาย boss micro panel - Plug&play monitoring solutions with built-in display for systems with up to 30 devices

    ภาษา ENG

    วันที่ 14/03/2025

    Release 1.0
