optiMist
ลักษณะทั่วไป

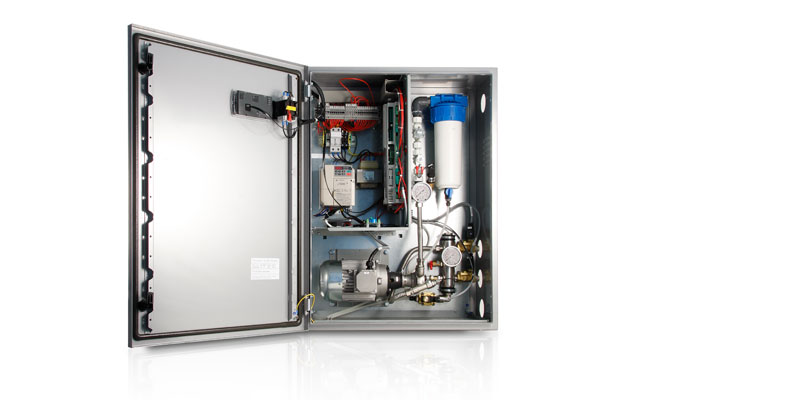

optiMist is a humidifier and adiabatic evaporative cooler that, by atomizing water into small droplets, allows the latter to evaporate spontaneously, subtracting heat from the humidified air, which is cooled at the same time. The system consists of a cabinet, inside which there is a flap valve pump, with pressures up to 15 bar, and an atomized water distribution rack, to be installed inside the air treatment unit.
The sophisticated control system managed by the pCO, which combines the action of the inverter (that regulates the speed and therefore the flow of the pump) and that of the two solenoid valves, which activate only the nozzles that are necessary, allowing the system to operate always at optimum pressure in a wide flow range. The two solenoid valves (placed inside the cabinet) divide the distribution into two independent steps, which can be simultaneously present on the same rack (acting one after the other sequentially) forming two steps of continuous modulation, or they can be separated in two different distribution systems, each with a single step, supplying two different areas: this is the typical case of the application of humidification + direct adiabatic cooling in the input duct and indirect adiabatic cooling in the output duct, with heat exchanger between the two air treatment units.
The optiMist cabinet is available in the following capacities: 50, 100, 200, 400, 800 e 1000 l/h. The distribution system can be selected from a large list of available codes, depending on the size of the duct and the atomization required. optiMist can be used with demineralized water, but also with mains water, as long as the unit is cleaned more frequently-
เพิ่ม
- two areas that can be controlled by a single cabinet, without the need for a secondary control panel: ideal for the application of direct and indirect Evaporative Cooling
- energy saving and possibility to reduce the time of use of mechanical cooling
- inverter that allows an accurate and efficient modulation
- two modulation steps to increase the accuracy of applications in a single area
- drainage valves and flushing cycles to avoid water stagnation
- sterile materials used which do not contribute to bacterial growth
- can be used with demineralized water, softened water or mains water
เอกสาร
Technical
-
BIM files
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส BIM files optiMist คำอธิบาย ภาษา ALL วันที่ 11/03/2020 Release R0 -
Manuals
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +0300065DE คำอธิบาย optiMist: Verdunstungskühler ภาษา GER วันที่ 01/02/2023 Release 1.7 รหัส +0300065EN คำอธิบาย optiMist: evaporative cooling ภาษา ENG วันที่ 01/02/2023 Release 1.7 รหัส +0300065ES คำอธิบาย optiMist: refrigeración evaporativa ภาษา SPA วันที่ 01/02/2023 Release 1.7 รหัส +0300065FR คำอธิบาย optiMist: refroidissement par évaporation ภาษา FRE วันที่ 01/02/2023 Release 1.7 รหัส +0300065IT คำอธิบาย optiMist: raffreddamento evaporativo ภาษา ITA วันที่ 01/02/2023 Release 1.7 รหัส +0300065CS คำอธิบาย optiMist Systém odpařovacího chlazení ภาษา CZE วันที่ 01/02/2023 Release 1.7 รหัส +0300065RU คำอธิบาย optiMist Испарительное охлаждение ภาษา RUS วันที่ 01/02/2023 Release 1.7 รหัส +0500065IE คำอธิบาย RACK - optiMist: Sistema di distribuzione/ Distribution system ภาษา ENG ITA วันที่ 10/01/2020 Release 3.1
Commercial
-
Brochure
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +3000046DE คำอธิบาย optiMist: Verdunstungskühlung und Befeuchtung ภาษา GER วันที่ 02/05/2012 Release 1.0 รหัส +3000046EN คำอธิบาย optiMist: evaporative cooling and humidifying ภาษา ENG วันที่ 02/05/2012 Release 1.0 รหัส +3000046ES คำอธิบาย optiMist: Refrigeración evaporativa y humectación ภาษา SPA วันที่ 02/05/2012 Release 1.0 รหัส +3000046FR คำอธิบาย optiMist: Refroidissement par évaporation et humidification ภาษา FRE วันที่ 02/05/2012 Release 1.0 รหัส +3000046IT คำอธิบาย optiMist: raffreddamento evaporativo ed umidificazione ภาษา ITA วันที่ 02/05/2012 Release 1.0 รหัส +3000046NL คำอธิบาย optiMist: adiabatischekoeling en bevochtiging ภาษา DUT วันที่ 02/05/2012 Release 1.0 รหัส +3000046RU คำอธิบาย optiMist: испарительное охлаждение и увлажнение ภาษา RUS วันที่ 02/05/2012 Release 1.0 รหัส +3000046AR คำอธิบาย OPTIMIST ภาษา ARA วันที่ 02/05/2012 Release 1.0 รหัส +3000046KR คำอธิบาย optiMist ภาษา KOR วันที่ 02/05/2012 Release 1.0 รหัส +3000046ZH คำอธิบาย optiMist - 高压细雾 蒸发式冷却与加湿 ภาษา CHI วันที่ 05/02/2012 Release 1.0 -
Other related documentation
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +800004030 คำอธิบาย Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico ภาษา ITA วันที่ 05/04/2023 Release 1.2 รหัส +800004031 คำอธิบาย Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving ภาษา ENG วันที่ 05/04/2023 Release 1.2 รหัส +3000224IT คำอธิบาย Educational - Utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R ภาษา ITA วันที่ 24/01/2022 Release 1.1 รหัส +3000224EN คำอธิบาย Educational - Make the best use of HVAC/R application technologies and systems ภาษา ENG วันที่ 24/01/2022 Release 1.1 รหัส +3000223IT คำอธิบาย Soluzione completa di servizi dedicata agli umidificatori CAREL ภาษา ITA วันที่ 21/12/2021 Release 1.0 รหัส +3000223EN คำอธิบาย Complete services solution for CAREL humidifiers ภาษา ENG วันที่ 21/12/2021 Release 1.0 รหัส +3000223ES คำอธิบาย Solución completa de servicios dedicada a los humidificadores CAREL ภาษา SPA วันที่ 21/12/2021 Release 1.0 รหัส +3000223FR คำอธิบาย Solution complète de services pour les humidificateurs CAREL ภาษา FRE วันที่ 21/12/2021 Release 1.0 รหัส +3000223PL คำอธิบาย Kompletne rozwiązanie serwisowe dla nawilżaczy CAREL ภาษา POL วันที่ 21/12/2021 Release 1.0 รหัส +3000018IT คำอธิบาย L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta ภาษา ITA วันที่ 15/09/2020 Release 4.1 รหัส +3000018DE คำอธิบาย Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. ภาษา GER วันที่ 15/09/2020 Release 4.1 รหัส +3000018EN คำอธิบาย Humidity matters! CAREL humidifiers, a solution for every need ภาษา ENG วันที่ 15/09/2020 Release 4.1 รหัส +3000018ES คำอธิบาย ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad ภาษา ENG SPA วันที่ 15/09/2020 Release 4.1 รหัส +3000018PL คำอธิบาย Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania ภาษา POL วันที่ 15/09/2020 Release 4.1 รหัส +3000054FR คำอธิบาย Solutions permettant d'économiser l'énergie dans les centres de données ภาษา FRE วันที่ 11/10/2016 Release 2.0 รหัส +3000054DE คำอธิบาย Energiesparlösungen für Rechenzentren ภาษา GER วันที่ 11/10/2016 Release 2.0 รหัส +3000054ES คำอธิบาย Soluciones para el ahorro energético en los data center ภาษา SPA วันที่ 11/10/2016 Release 2.0
Images
-
High resolution images
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส PH12LEC301-Optimist คำอธิบาย CAREL-optiMist-Pressurised water humidifier-Adiabatic humidifier ภาษา ALL วันที่ 01/07/2021 Release R.0
