th-Tune



ลักษณะทั่วไป

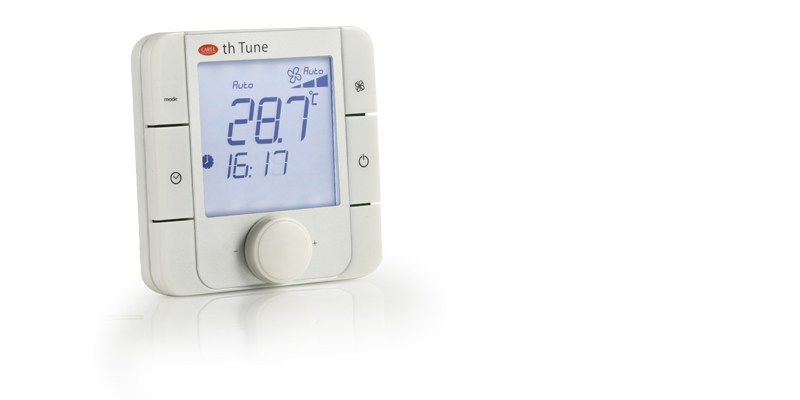

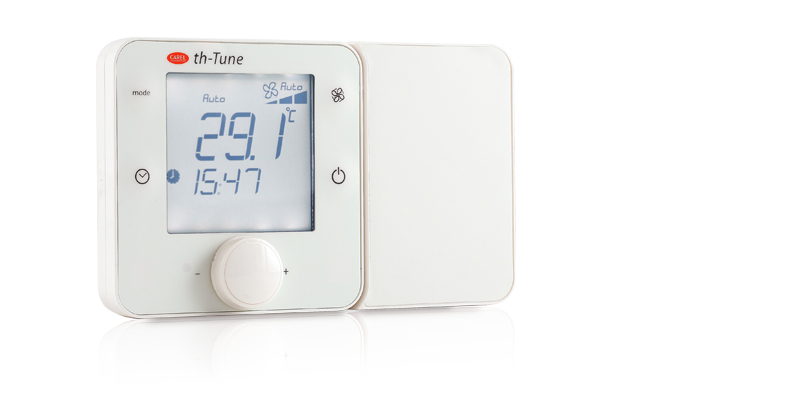

th-Tune is the CAREL pCO sistema family room terminal that allows users to control temperature and humidity in residential environments. Depending on the model, the terminal can be fitted with a temperature probe or temperature and humidity probe, while the power supply may be 230 Vac or 24 Vac/Vdc. th-Tune is compatible with the main flush-mounted switch boxes available on the market (IT, US, DE, CN).
Temperature and humidity setting is simple and intuitive using the knob on the front with rotary encoder. th-Tune also lets users adjust some settings for the room controller, such as operating mode and time bands. Control and information displayed depend exclusively on the controller that th-Tune is connected to. The compact dimensions and elegant design make the terminal easy adaptable to all types of rooms. Connection to the pCO controller is available over the RS485 network using the Modbus protocol.
เอกสาร
Technical
-
Technical Leaflets
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +0500017AR คำอธิบาย AT*-th Tune Electronic controller for air-conditioning (wall mountng model) ภาษา ARA ENG วันที่ 14/04/2011 Release 1.1 รหัส +0500017RU คำอธิบาย AT*-th Tune: Электронный контроллер для систем вентиляции и кондиционирования (настенный монтаж) / Electronic controller for air-conditioning (wall mountng model) ภาษา ENG RUS วันที่ 13/04/2011 Release 1.1 รหัส +0500016EZ คำอธิบาย AT* - th Tune: 空调电子控制器(嵌入式安装)/ Electronic controller for air-conditioning (flush-mount model) ภาษา CHI ENG วันที่ 13/04/2011 Release 1.2 รหัส +0500016IE คำอธิบาย AT* - th Tune: Controllo elettronico per condizionamento (modello a incasso)/ Electronic controller for air-conditioning (fl ush-mount model) ภาษา ENG ITA วันที่ 13/04/2011 Release 1.2 รหัส +0500016RU คำอธิบาย AT* - th Tune: Электронный контроллер для систем вентиляции и кондиционирования (настенный монтаж) / Electronic controller for air-conditioning (fl ush-mount model) ภาษา ENG RUS วันที่ 13/04/2011 Release 1.2 รหัส +0500017IE คำอธิบาย AT*-th Tune Controllo elettronico per condizionamento (mod. a parete) / Electronic controller for air-conditioning (wall mountng model) ภาษา ENG ITA วันที่ 13/04/2011 Release 1.1 -
2D/3D drawings
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส 2d-3d th-tune Flush mounting คำอธิบาย 2D-3D drawings ภาษา ALL วันที่ 22/06/2015 Release R0 รหัส 2d-3d th-tune Wall mounting คำอธิบาย 2D-3D drawings ภาษา ALL วันที่ 22/06/2015 Release R0
