pGDN

ลักษณะทั่วไป

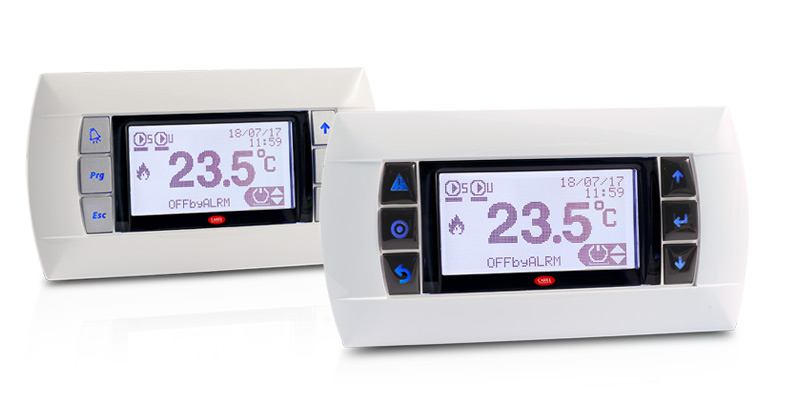

The pGDN semi-graphic terminals are part of the range of pCO sistema user interfaces designed to offer higher versatility and extensive customisation possibilities. When designing these terminals, CAREL focused special attention on simplicity of programming and the quality of performance, while maintaining a high aesthetic standard. The terminals have a 132x64 pixel backlit WHITE display and a 6-button keypad.
pGDN features a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
These terminals can display graphic symbols of various sizes and the main international alphabets, and feature the flexibility and ease of customisation that is the basis for the design of the CAREL pCO/c.pCO sistema family products, offering more demanding customers several customisation possibilities at affordable costs, even for limited quantities. Connection to the pCO controller is available over the RS485 network using the pLAN protocol.-
เพิ่ม
New hardware
PGN use a full new generation of microprocessors and LCD drivers.
Higher alarm visibility
Thanks to the dual-color alarm keys, the alarming indication is much easier to see.
Preserve backward compatibility
The code replacement is fully guaranteed by the HW and SW backward compatibility with pGD0 and pGD1/E.
