boss one

“PCOG***WE0 / PCOD***WE0”
boss one
  • ลักษณะทั่วไป

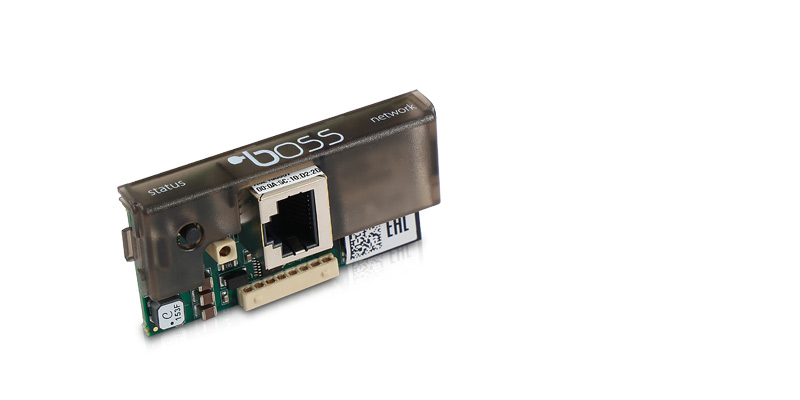

    boss one has the same size and shape as pCOWeb SE, in order to ensure compatibility with all CAREL programmable controllers that featured the BMS card option. The software, on the other hand, differs substantially from pCOWeb, with the introduction of numerous features that cover the same applications yet with much high levels of IT security, usability and flexibility. All exploiting the experience and reliability inherited from the boss range, which the boss one internal logic and user interface are based on.

    boss one is available in two SW versions, called “gateway” and “supervisor”: both can manage a single unit, but differ in terms of the type of application they refer to. The “gateway” version has been created to mainly allow integration of the unit into a local BMS that communicates via Modbus, BACnet and SNMP protocols. The “supervisor” version, on the other hand, is intended for applications that, in addition to the field protocols, require supervisory features, such as managing log files, sending emails or instant messages for alarms, and communicating with the outside world (Internet) to CAREL cloud systems or third-party systems via XML or MQTT protocol.


  • เพิ่ม

    Security

    • Access security through user and profile management, centralised with LDAP systems where necessary, password and password expiry security control and blocking of users in the event of multiple incorrect password entry attempts.
    • Secure data transmission by management of encrypted protocols for browsing the web, sending emails and exchanging data with third-party systems.

    Flexibility

    • Flexibility in configuring the protocols through a web interface that can be used to set the index and property for each individual variable
    • Flexibility in user management, through profiling to enable or prevent individual users or groups from accessing the various sections of the software application.

    Smart user interface

    • Easy troubleshooting in the field through an intuitive user interface that can be accessed from mobile devices.
    • Easily customised user interface using the integrated features on the web pages to changed images/logos and through the possibility to create maps with the c.web tool.







เอกสาร

Technical

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +050003246

    คำอธิบาย boss one Istruzioni di montaggio / Assembly procedure

    ภาษา ENG  ITA

    วันที่ 19/11/2019

    Release 1.0

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0300088DE

    คำอธิบาย boss: Lokale Überwachungslösung für mittelgroße und große Anlagen

    ภาษา GER

    วันที่ 21/01/2019

    Release 1.3

    รหัส +0300088EN

    คำอธิบาย boss: Local supervisor for medium and large systems

    ภาษา ENG

    วันที่ 21/01/2019

    Release 1.3

    รหัส +0300088ES

    คำอธิบาย boss: Supervisor local para sistemas de tamaño medio y grande

    ภาษา SPA

    วันที่ 21/01/2019

    Release 1.3

    รหัส +0300088FR

    คำอธิบาย boss: Superviseur local pour les systèmes de taille moyenne et grande

    ภาษา FRE

    วันที่ 21/01/2019

    Release 1.3

    รหัส +0300088IT

    คำอธิบาย boss: Supervisore locale per sistemi di medie e grandi dimensioni

    ภาษา ITA

    วันที่ 21/01/2019

    Release 1.3


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000228EN

    คำอธิบาย boss one - Connectivity, security and flexibility for HVAC/R units

    ภาษา ENG

    วันที่ 20/10/2021

    Release 1.0

    รหัส +3000228IT

    คำอธิบาย boss one - Connettività, sicurezza e flessibilità per unità HVAC/R

    ภาษา ITA

    วันที่ 20/10/2021

    Release 1.0


Images

  • High resolution images
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส PH21LPC301-boss-one-board.jpg

    คำอธิบาย

    ภาษา ALL

    วันที่ 29/09/2021

    Release
