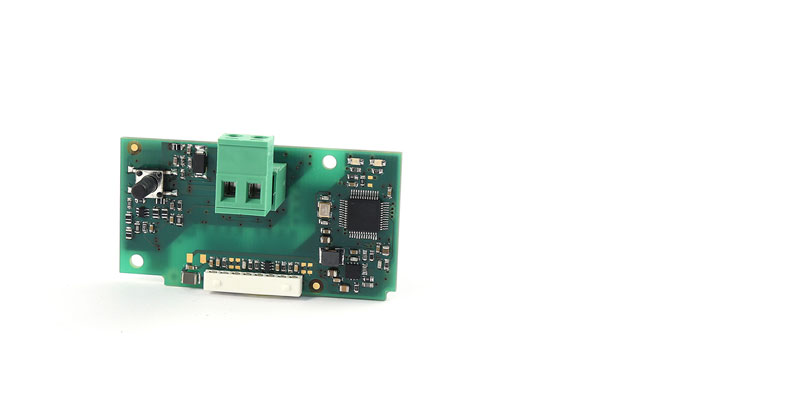

KNX card
PCOSxxKXN0

ลักษณะทั่วไป
CAREL KNX serial card is part of the range of optional cards for pCO, c.pCO, CAREL solution for managing HVAC/R applications and systems. The card, acts as a gateway between a network operating according to the KNX/EIB protocol and the Modbus RTU protocol, supported directly by the firmware on pCO controller, the operating system on the c.pCO controller and the firmware on the e-drofan controller.
To configure and install the card, the following are required: ETS5 professional program, Device Configuration Apps tool (DCA) (downloadable from KNX) and the product database (online catalogue KNX).
เอกสาร
Technical
-
Manuals
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +030220326 คำอธิบาย Scheda KNX / KNX card ภาษา ENG ITA วันที่ 13/05/2021 Release 1.2
Images
-
High resolution images
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส PH17LPC304-KNX-CAD คำอธิบาย CAREL KNX card - Connectivity - BMS (Building Management System) ภาษา ALL วันที่ 11/03/2022 Release R.0
