µRack CO2

U00000MRT0400
µRack CO2
  • ลักษณะทั่วไป

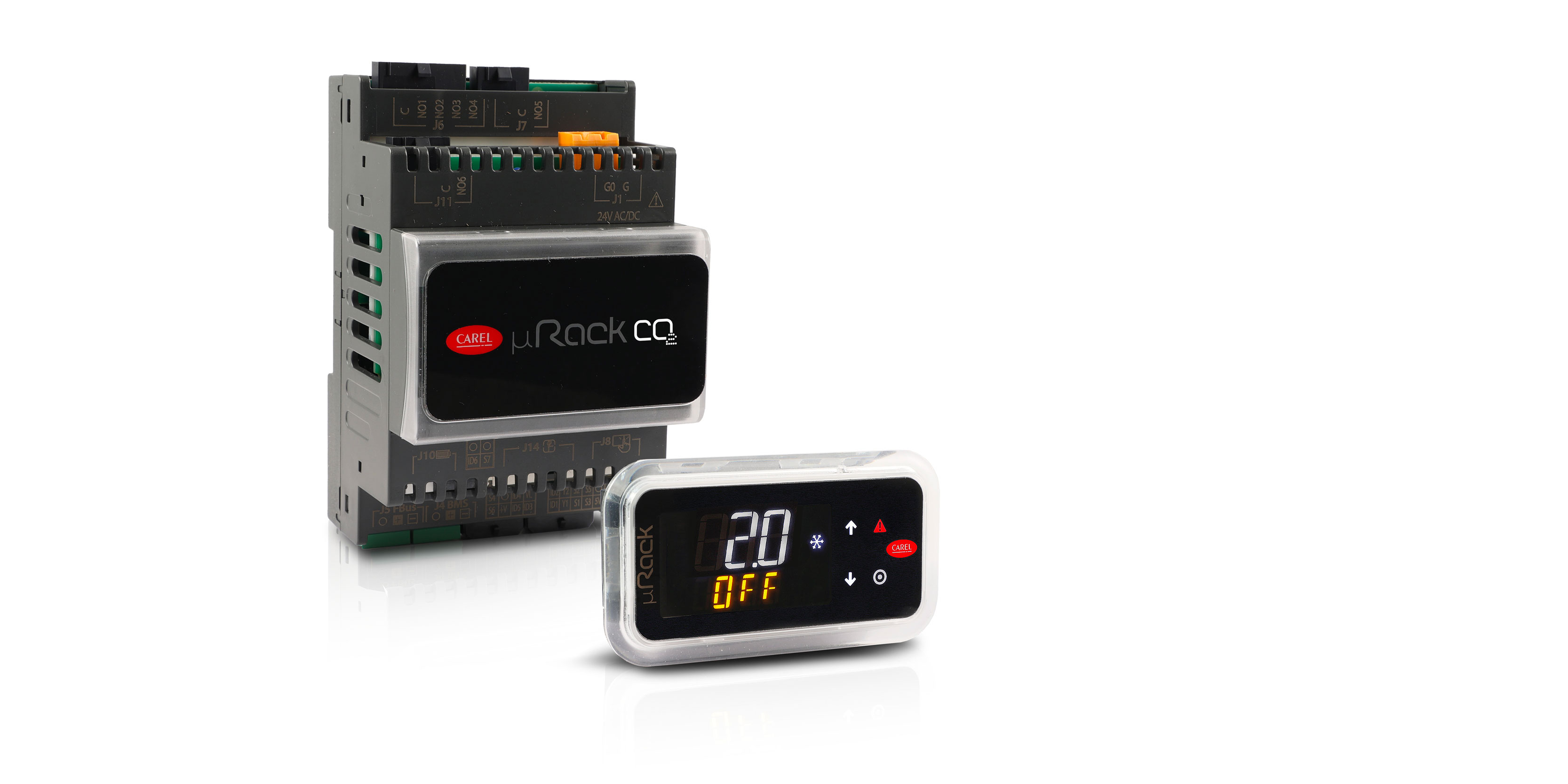

    µRack CO2 is CAREL’s compact controller for the management of condensing units and small transcritical CO2 compressor racks.
    The main feature of the proposal is NFC and Bluetooth connectivity which, through the Applica app for mobile devices, extends the features of traditional user interfaces, simplifying interaction with the controller by making the functions available directly from a smartphone or tablet.
    µRack CO2 can manage the following typical compressor rack configurations:

    • up to 1 suction line, maximum 4 compressors (modulating, timed, rotation and inverter)
    • gas cooler fans (on/off, modulating)
    • high pressure valve (HPV) control
    • FGV control for liquid receiver pressure
    • management of modulating devices
    • direct connection to CAREL or third-party supervisory systems (Modbus protocol)
    • algorithms for managing system safety and optimising efficiency (Floating Condensing and Floating Suction)



    The high flexibility means the controller can be used in stand-alone mode to manage just the HPV and FGV valves (with optional management of the compressors/gas cooler fans).
    Completing the proposal is a software suite of useful tools for each stage of the system life cycle: from design and end-of-line configuration/testing, to maintenance in the field.

  • เพิ่ม

    Complete management of small compressor racks or condensing units

    Functions for the control of a small compressor rack unit with up to four compressors (the first modulating), four gas cooler fans (ON/OFF or modulating), complete management of transcritical operation via the algorithm for calculating the optimal pressure.

    Simplified interaction

    Guided commissioning procedure (wizard), dedicated dashboard for immediate understanding of the unit’s operating conditions, troubleshooting guidelines for alarms, real-time saving and sharing of the rack parameter settings: all directly from a smartphone or tablet.

    Versatility

    Possibility to configure the controller for complete management of the compressor rack/condensing unit or for the transcritical part only. High degree of configuration flexibility: possibility to change the I/O settings and assign generic functions for the execution of auxiliary actions in addition to the standard logic.

    High efficiency for compact applications

    Performance optimisation through management of modulating loads (compressors and gas cooler fans). Possibility to integrate field devices through the Fieldbus serial port. Logic for managing the floating suction and condensing pressure set point.



เอกสาร

Technical

  • 2D/3D drawings
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส U30R00MRT0400

    คำอธิบาย 2D-3D drawings

    ภาษา ALL

    วันที่ 13/11/2024

    Release R0

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0300026IT

    คำอธิบาย μRack - Soluzione per moto-condensanti e centrali frigorifere compatte

    ภาษา ITA

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026EN

    คำอธิบาย μRack - Solution for condensing units and compact compressor racks

    ภาษา ENG

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026ES

    คำอธิบาย μRack Solución para motocondensadoras y centrales de refrigeración compactas

    ภาษา SPA

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026RU

    คำอธิบาย Решения для компрессорно-конденсаторных и компактных многокомпрессорных агрегатов

    ภาษา RUS

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026DE

    คำอธิบาย μRack Lösung für Verflüssigersätze und kompakte Verbundkälteanlagen

    ภาษา GER

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026FR

    คำอธิบาย μRack Solution pour les unités de condensation et centrales de réfrigération compactes

    ภาษา FRE

    วันที่ 10/06/2024

    Release 3.0

    รหัส +0300026PT

    คำอธิบาย μRack Solução para unidades de condensação e centrais frigoríficas compactas

    ภาษา POR

    วันที่ 10/06/2024

    Release 3.0

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0500210IE

    คำอธิบาย μRack Soluzione per motocondensanti e centrali frigorifere compatte / Solution for condensing units and compact compressor racks

    ภาษา ENG  ITA

    วันที่ 11/09/2024

    Release 1.2

    รหัส +0500210FD

    คำอธิบาย Solution pour les unités à motocondensation et centrales de réfrigération compactes / Lösung für Verflüssigersätze und kompakte Verbundkälte-anlagen

    ภาษา FRE  GER

    วันที่ 11/09/2024

    Release 1.2


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000233EN

    คำอธิบาย μRack - Solution for condensing units and compact compressor racks

    ภาษา ENG

    วันที่ 02/08/2024

    Release 1.3

    รหัส +3000233IT

    คำอธิบาย μRack - Soluzione per moto-condensanti e centrali frigorifere compatte

    ภาษา ITA

    วันที่ 02/08/2024

    Release 1.3


Images

  • High resolution images
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส PH24LPR301-µRack-CO2-DIN-no-buitin-display

    คำอธิบาย CAREL - µRack CO2 - Compressor rack - Food Retail

    ภาษา ALL

    วันที่ 29/07/2024

    Release R.0
