New MPXPRO

SPM*
New MPXPRO
  • ลักษณะทั่วไป

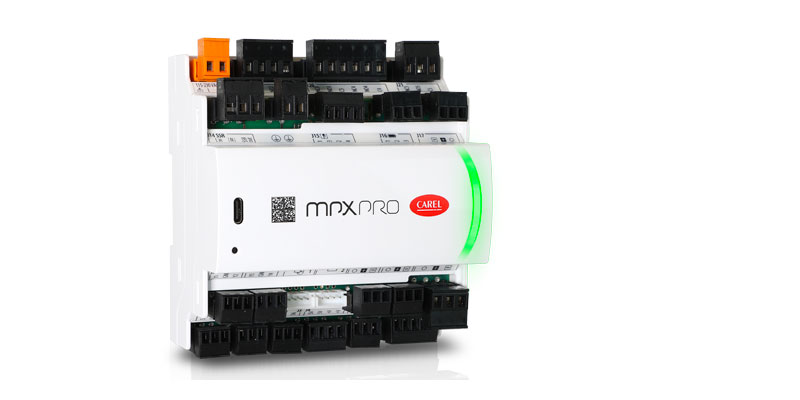

    The new MPXPRO extends and improves the range of MPX family controllers, representing the most advanced solution for the control of commercial refrigeration units, from stand-alone cabinets with variable-speed compressors, to remote cabinets and cold rooms with electronic expansion valves. Designed on a flexible and scalable platform, the new MPXPRO responds to the increasingly complex needs of the food retail business, combining high performance and energy efficiency.



    By integrating current sensors that directly monitor electrical loads, any anomalies can be identified quickly, allowing a prompt and reliable service response. These can also provide providing detailed monitoring of overall energy consumption for benchmarking activities and energy performance optimisation.



    In addition to complete control of the unit, the new MPXPRO stands out for the integration of cutting-edge technologies such as NFC and Bluetooth™ (BLE) wireless connectivity, simplifying interaction with mobile devices and facilitating configuration and commissioning via dedicated apps.



    The uniform aesthetics across the entire range, the ease of use and the scalability of the features, combined with the efficiency ensured by the ability to manage modulating devices (fans, heaters, compressors), make the new MPXPRO a strategic element in modern, high-performance, and fully-integrated refrigeration systems.

  • เพิ่ม

    The new MPXPRO represents the best performing solution for the control of high-end food retail units.

    Compact dimensions

    In just six DIN modules, it is the most compact controller in its category, ideal for optimising space and performance without compromise.

    Energy monitoring and intelligent prevention

    Thanks to three built-in current sensors, the controller monitors the power consumption of loads in real time, promptly detecting any anomalies and ensuring reliable and proactive control.

    One solution for multiple needs

    One single part number for the direct control of electronic expansion valves, both bipolar stepper (with built-in Ultracap) and PWM, adapting to all application requirements.

    Cutting-edge connectivity

    Up to two independent RS485 serial ports, NFC and Bluetooth™ connectivity included in the user interface for easy interaction with apps, and USB-C port for quick setup and upgrades.

    Advanced versatility

    A versatile I/O to adapt to any need for the management of refrigeration units:

    • up to eight analogue inputs, with the possibility of configuring up to three of them as active probes;
    • three dedicated digital inputs (up to a maximum of five depending on the number of analogue inputs used);
    • version with five or six digital outputs;
    • up to four modulating 0-10 V / PWM outputs for controlling anti-sweat heaters/evaporator fans or variable-speed compressors (VCC).


เอกสาร

Technical

  • 2D/3D drawings
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส MSC - MPXPRO - 2D

    คำอธิบาย 2D-3D drawings

    ภาษา ALL

    วันที่ 15/04/2025

    Release R.0

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0500196ML

    คำอธิบาย Technical leaflet - MPXPRO - Mid Size Controller

    ภาษา ENG

    วันที่ 07/05/2025

    Release 1.1

    รหัส +0500196ML_ITA

    คำอธิบาย Foglio tecnico - MPXPRO - Mid Size Controller

    ภาษา ITA

    วันที่ 07/05/2025

    Release 1.1

    รหัส +0500197ML

    คำอธิบาย MPXPRO - Electronic controller for centralized commercial refrigeration applications

    ภาษา ENG

    วันที่ 15/04/2025

    Release 1.0

    รหัส +0500197ML_ITA

    คำอธิบาย MPXPRO Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate

    ภาษา ITA

    วันที่ 15/04/2025

    Release 1.0


Images

  • High resolution images
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส PH25LMX301-MPXPRO-Vertical-Connectors

    คำอธิบาย MPXPRO - Controller for cabinets and cold rooms

    ภาษา ALL

    วันที่ 15/04/2025

    Release R.0

    รหัส PH25LMX307-MPXPRO-Vertical-Connectors-front

    คำอธิบาย MPXPRO - Controller for cabinets and cold rooms

    ภาษา ALL

    วันที่ 15/04/2025

    Release R.0

    รหัส PH25LMX302-MPXPRO-Horizontal-Connectors

    คำอธิบาย MPXPRO - Controller for cabinets and cold rooms

    ภาษา ALL

    วันที่ 15/04/2025

    Release R.0

    รหัส PH25LMX308-MPXPRO-Horizontal-Connectors-front

    คำอธิบาย MPXPRO - Controller for cabinets and cold rooms

    ภาษา ALL

    วันที่ 15/04/2025

    Release R.0
