MasterCase2
MC2*

ลักษณะทั่วไป

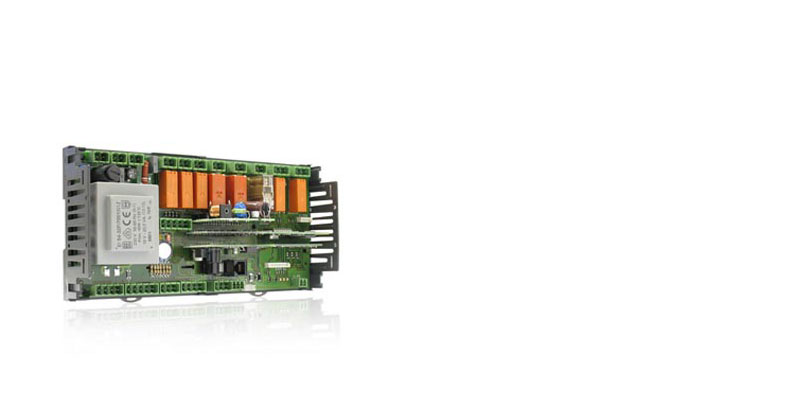

MasterCase2 represents the most advanced solution for the complete control of refrigerating utilities, such as showcases and cold rooms, and is therefore ideal for applications in supermarkets. It combines the management of PT1000 probes (see the corresponding model) and power relays for the direct management of the electrical loads.
Up to 7 probes can be connected, configured as NTC, 0 to 5 V (PT1000) 4 to 20 mA, while there are 8 relay outputs for the control of compressors/solenoid valves, evaporator fans, defrost, alarm, hot wire, lights, aux1 and aux2. MasterCase2 can control a PWM on/off electronic expansion valve or alternatively, with the optional driver board, an expansion valve with stepper motor, such as the CAREL E2V.
MasterCase2 can be connected in a local network for the Main/Secondary management of multiplexed showcases. A series of optional accessories is available for installation on the MasterCase2, such as: clock board and serial boards for interfacing to a supervisory system.
เอกสาร
Technical
-
Manuals
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +03P220220 คำอธิบาย MasterCase2 ภาษา ITA วันที่ 28/10/2005 Release 1.0 รหัส +03P220221 คำอธิบาย MasterCase 2 ภาษา ENG วันที่ 28/10/2005 Release 1.0 รหัส +03P220223 คำอธิบาย MasterCase2 ภาษา GER วันที่ 28/10/2005 Release 1.0
Commercial
-
Brochure
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +302240373 คำอธิบาย Retail sistema...the one solution ภาษา GER วันที่ 09/06/2010 Release 4.0 รหัส +302240374 คำอธิบาย Retail sistema...the one solution ภาษา SPA วันที่ 07/02/2007 Release 4.1 รหัส +302240375 คำอธิบาย retail sistema...the one solution ภาษา POR วันที่ 07/02/2007 Release 4.1 รหัส +302240377 คำอธิบาย retail... the one solution ภาษา RUS วันที่ 07/02/2007 Release 4.1 รหัส +302240370 คำอธิบาย Retail Solutions... the one solution ภาษา IND วันที่ 09/10/2006 Release 4.0 รหัส +302240371 คำอธิบาย Retail sistema...the one solution ภาษา ENG วันที่ 09/10/2006 Release 4.0 รหัส +30C239431 คำอธิบาย 陈列柜和冷库的应用 解决方案 ภาษา CHI วันที่ 01/10/2006 Release 1.0
