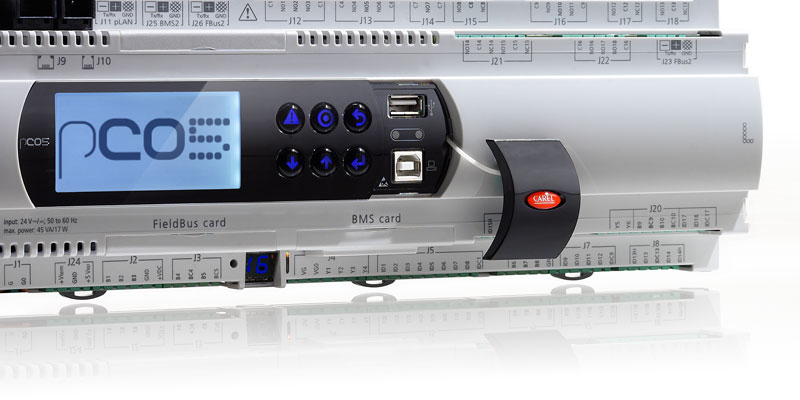

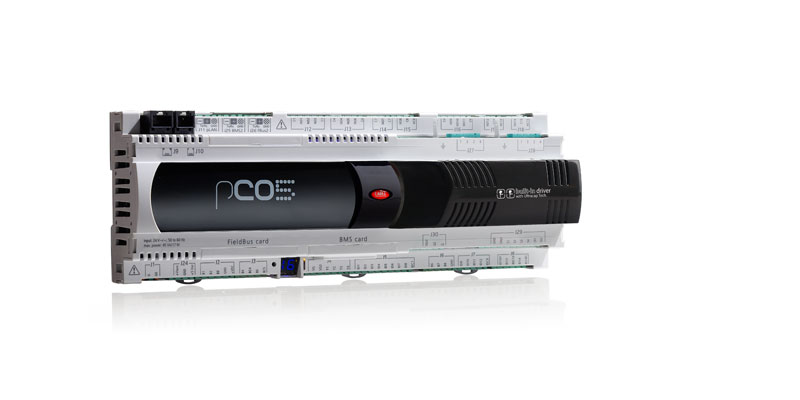

pCO5 (I/O board)

pCO5*
pCO5 (I/O board)
pCO5 (I/O board) pCO5 (I/O board) pCO5 (I/O board)

  • ลักษณะทั่วไป

    The new proposal from CAREL in its range of programmable controllers is the result of continual improvements in more than 25 years' experience in the development of controllers for the HVAC/R market. Compared to the current family of pCO controllers (pCO3), the pCO5 has been enhanced with specific new functions to improve the efficiency of HVAC/R systems, such as integration of the electronic expansion valve driver, with ultra cap technology that guarantees the valve is closed in the event of power failures. In addition, the pCO5 offers more demanding designers up to five serial lines, three of which are always available and allow the protocol to be configured, plus two optional lines that can be configured in terms of both the protocol (Modbus®, BACnet™, CAREL, CANbus, Konnex LON) and the physical support (RS485, Ethernet, CAN, Konnex, Echelon®). Versions are available with both "Host" and "Device" USB ports for connecting a standard USB pendrive and connecting directly to a PC without needing serial coverters.
    Integration of these functions brings various benefi ts to manufacturers and designers of HVAC/R systems, including:

    • less wiring, as the EXV driver modules, battery charger modules and backup battery modules have been replaced in the pCO5 by the built-in EXV driver with ultra cap technology
    • guaranteed closing of the valve in the event of power failures, thanks to ultra cap technology. This eliminates the need for the solenoid valve that was previously required to guarantee closing of the circuit if no battery module was available more powerful and distributed control thanks to the fi ve serial lines, allowing management of smart actuators such as drivers for compressors with DC inverter technology, brushless fans (EC Fans), centrifugal compressors, variable flow-rate pumps, serial sensors, wireless probes, heat meters, etc.
    • lower overall cost than the pCO3 thanks to integration of the functions described here

    Naturally, the pCO5 guarantees perfect compatibility with the entire range of pCO3 controllers, in both HW and SW terms, so as to protect and guarantee the investments of CAREL customers

  • เพิ่ม

    • Backward Compatibility - pCO5 is Pin to Pin compatible with pCO3. Software is fully binary compatible using pCO3 emulation BIOS.
    • Connectivity - pCO5 features two integrated serial interfaces, two optional expansion cards and two USB ports.
    • USB - Simple service and monitoring using the standard USB ports. USB Host port available to connect standard USB dongle and USB Device port to connect to a PC without external converters.
    • Energy Saving - pCO5 Medium model embeds two EVDEVO Expansion Valve Drivers with optional Uptracap module, for integrated energy saving management.


เอกสาร

Technical

  • Manuals
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0300009IT

    คำอธิบาย pCO5: controllo programmabile

    ภาษา ITA

    วันที่ 24/04/2014

    Release 1.2

    รหัส +0300009EN

    คำอธิบาย pCO5: programmable controller

    ภาษา ENG

    วันที่ 24/04/2014

    Release 1.2

    รหัส +030221945

    คำอธิบาย Protocollo Modbus® sui controlli pCO/ Modbus® protocol for pCO controllers

    ภาษา ENG  ITA

    วันที่ 18/07/2012

    Release 1.1

  • Technical Leaflets
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +0500040RU

    คำอธิบาย pCO5: электронный контроллер/ electronic controller

    ภาษา RUS

    วันที่ 07/06/2011

    Release 1.2

    รหัส +0500040ML

    คำอธิบาย pCO5: controllo elettronico/ electronic controller/ Elektronische Steuerung

    ภาษา ENG  GER  ITA

    วันที่ 07/06/2011

    Release 1.2

    รหัส +0500041IE

    คำอธิบาย PCOS00UC20: ULTRACAPacitor MODULE per pCO SISTEMA con driver valvola EVDEVO EMBEDDED / ULTRACAPacitor MODULE for pCO sistema with valve driver EMBEDDED EVDEVO

    ภาษา ENG  ITA

    วันที่ 15/12/2010

    Release 1.0


Commercial

  • Brochure
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000036ZH

    คำอธิบาย 螺杆冷水机组/热泵 集成解决方案

    ภาษา CHI

    วันที่ 15/03/2011

    Release 1.0

    รหัส +3000036EN

    คำอธิบาย Solution for screw chiller and heat pump units

    ภาษา ENG

    วันที่ 15/03/2011

    Release 1.0

    รหัส +3000021SV

    คำอธิบาย integrerade lösningar för högpresterande enheter

    ภาษา SWE

    วันที่ 01/03/2010

    Release 1.0

    รหัส +3000021IT

    คำอธิบาย PCO SISTEMA+

    ภาษา ITA

    วันที่ 01/03/2010

    Release 1.0

    รหัส +3000021EN

    คำอธิบาย PCO SISTEMA+

    ภาษา ENG

    วันที่ 01/03/2010

    Release 1.0

    รหัส +3000021DE

    คำอธิบาย PCO SISTEMA+

    ภาษา GER

    วันที่ 01/03/2010

    Release 1.0

  • Other related documentation
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +3000054EN

    คำอธิบาย Energy saving solutions for data centers

    ภาษา ENG

    วันที่ 26/05/2023

    Release 3.0

    รหัส +3000054ZH

    คำอธิบาย 数据中心节能解决方案

    ภาษา CHI

    วันที่ 11/10/2016

    Release 2.0

  • Success Story
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +4000017IT

    คำอธิบาย La tecnologia della piattaforma servizi tERA e la professionalità ed esperienza del service Blue Box al servizio del cliente.

    ภาษา ITA

    วันที่ 20/03/2012

    Release 1.0

    รหัส +4000015PT

    คำอธิบาย Integração é sinônimo de economia energética

    ภาษา POR

    วันที่ 03/08/2011

    Release 1.0

    รหัส +4000015IT

    คำอธิบาย Integrazione è sinonimo di risparmio energetico

    ภาษา ITA

    วันที่ 03/08/2011

    Release 1.0

    รหัส +4000015FR

    คำอธิบาย Intégration est synonyme d’économie d’énergie

    ภาษา FRE

    วันที่ 03/08/2011

    Release 1.0

    รหัส +4000015ES

    คำอธิบาย Integración es sinónimo de ahorro energético

    ภาษา SPA

    วันที่ 03/08/2011

    Release 1.0

    รหัส +4000015EN

    คำอธิบาย Integration means energy saving

    ภาษา ENG

    วันที่ 03/08/2011

    Release 1.0

    รหัส +4000015DE

    คำอธิบาย Integrieren heißt Energie sparen

    ภาษา GER

    วันที่ 03/08/2011

    Release 1.0
