powersplit NA
PSB*/PST*
ลักษณะทั่วไป
powersplit is a control for multiplexed display cases equipped with on-board compressor.
It is designed to allow for a reduction of the wirings and of the related power components; the power board has been designed to eliminate the support terminal block.

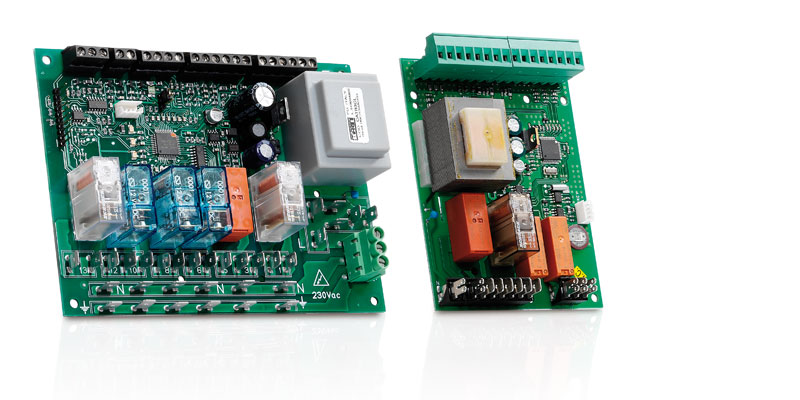

The range consists of a 4 or 6-relay power board with clock (optional) and optical sensor for light detection, with terminal for separate user terminal. The user terminals are available in small format (drill template 29x71mm) and large format (drill template 138,5x23mm).
The models equipped with clock can guarantee the control of the preserved food temperature according to the requirements of the HACCP directive.
Powersplit allows for the control of multiplexed defrosting (up to 6 units), thanks to the local LAN network, interconnecting serially the power boards. In addition to defrosting, thanks to the local network you can also centralize the controls and alarms.
EN 13485, air, S,A,1, -30°C +30°C
The ir33 series, equipped with standard Carel NTC probe, meets the specifications of the EN 13485 standard (thermometers for measuring the air temperature for applications on storage and distribution units for chilled, frozen, deep-frozen/quick-frozen food and ice cream) set as mandatory for the storage of frozen and deep frozen food by the EC Regulation 37/2005 of January 12, 2005.
เอกสาร
Technical
-
Certificates
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส cert_UR PSB คำอธิบาย PSB*: UR certification ภาษา ENG FRE GER ITA POR SPA วันที่ 17/09/2003 Release -
Manuals
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +030220320 คำอธิบาย powersplit/powersplit small: Manuale d’uso/ User manual ภาษา ENG ITA วันที่ 10/06/2009 Release 2.2 -
Technical Leaflets
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +050003810 คำอธิบาย powersplit ภาษา ENG GER ITA วันที่ 10/06/2009 Release 1.4 รหัส +050003811 คำอธิบาย powersplit ภาษา FRE POR SPA วันที่ 10/06/2009 Release 1.4 รหัส +050003920 คำอธิบาย Terminali PST e IR/ PST and IR repeaters ภาษา ENG ITA วันที่ 10/06/2009 Release 2.1 รหัส +050003922 คำอธิบาย Terminali PLD/PLD terminals ภาษา ENG ITA วันที่ 07/09/2005 Release 1.0 รหัส +050003812 คำอธิบาย powersplit - PSBOT00000 Modifiche ed aggiunte al fg. istr. +050003810 / Modifications and additions to tech. leaflet +050003810 ภาษา ENG ITA วันที่ 29/10/2003 Release 1.0
Commercial
-
Brochure
* Entries are ordered by date
รหัส คำอธิบาย ภาษา วันที่ * Release รหัส +302235330 คำอธิบาย bar pasticcerie: il freddo sotto controllo ภาษา ITA วันที่ 01/10/2005 Release 1.0 รหัส +302240360 คำอธิบาย powersplit ...the network evolution! ภาษา ITA วันที่ 01/03/2004 Release 2.0 รหัส +302240361 คำอธิบาย powersplit ...the network evolution! ภาษา ENG วันที่ 01/03/2004 Release 2.0
