mpx NA

IRMPX*
mpx NA

  • ลักษณะทั่วไป

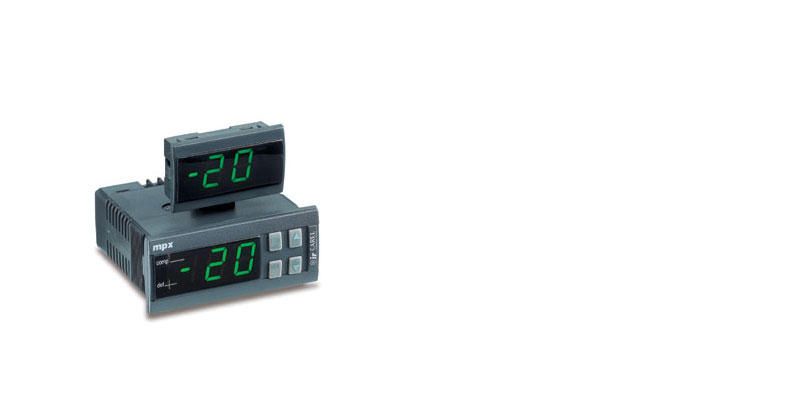

    MAIN version mpx is the most complete CAREL controller for the management of multiplexed cabinets (supermarket applications) and cold rooms. It allows the creation of a local network (mpxLAN) of up to 6 instruments, with management in Main/Secondary configuration. Some control functions and parameters (using the download function) can be shared between the various instruments in the mpxLAN. The connection to supervisory systems is handled by the master. The clock, fitted on the main controller, manages the defrosts on all the showcases connected in the mpxLAN (8 times can be set). The instrument also features functions that make it compliant with the HACCP standards. The electrical connections are made using quick-fit multiple connectors. In the models with 4 relays, the compressor (or electrovalve), the defrost function and the evaporator fans can all be managed, while the auxiliary MULTIFUNCTION relay can be used as an alarm or light switch. The main instrument, if necessary, can also be configured as a secondary, by setting the corresponding parameter. SECONDARY version An mpx instrument in the secondary version can be connected in an mpxLAN to a master, using two wires, with a total of 6 instruments in the local network (1 master+5 clients). Each mpx controls its own refrigeration unit completely independently, in coordination with the other instruments. In fact, the presence of a main instrument allows the management of synchronised defrosts


เอกสาร

Commercial

  • Brochure
    * Entries are ordered by date
    รหัส คำอธิบาย ภาษา วันที่ * Release
    รหัส +30C239431

    		 คำอธิบาย 陈列柜和冷库的应用 解决方案

    		 ภาษา CHI

    		 วันที่ 01/10/2006

    		 Release 1.0
